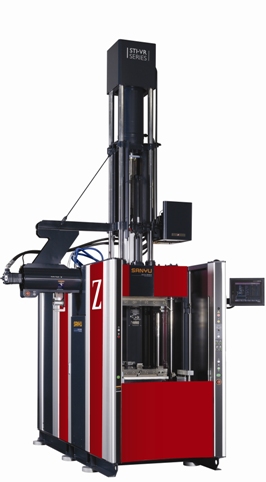

VR-Z Specifications |
|
| |
|
|
|
|
| |
VR-Z rubber injection molding presses come in 110, 160 and |
Select: |
| |
220 metric ton clamping pressure. |
STI-1.0-110VR-Z (110ton) |
| |
|
STI-1.6-160VR-Z (160ton) |
| |
|
|
|
STI-1.6-220VR-Z (220ton) |
| |
STI-1.0-110VR-Z |
|
|
Standard Items |
| |
Clamping Force: |
121 US Ton |
110 Metric Ton |
Options |
| |
Daylight: |
21.65in |
550mm |
|
| |
Clamp Stroke: |
15.75in |
400mm |
 |
| |
Heating Platen: |
19.68in x 19.68in |
500mm x 500mm |
| |
Platen Heaters: |
Upper: 6 x 1.0kW |
Lower: 6 x 1.0kW |
| |
Ejector Force: |
3.9 US Ton |
3.5 Metric Ton |
| |
Injection Volume: |
61in3 |
1000cm3 |
| |
Injection Pressure: |
28,717Psi |
198Mpa |
| |
Operating Height: |
35.83in |
910mm |
| |
Machine Dimensions: |
41Win D108 H149 |
W1050mm D2755 H3796 |
| |
|
|
|
| |
STI-1.6-160VR-Z |
|
|
| |
Clamping Force: |
176 US Ton |
160 Metric Ton |
| |
Daylight: |
21.65in |
550mm |
| |
Clamp Stroke: |
15.75in |
400mm |
| |
Heating Platen: |
23.62in x 23.62in |
600mm x 600mm |
| |
Platen Heaters: |
Upper: 6 x 1.2kW |
Lower: 6 x 1.2kW |
| |
Ejector Force: |
3.9 US Ton |
3.5 Metric Ton |
| |
Injection Volume: |
61/97.6/122in3 |
1000/1600/2000cm3 |
| |
Injection Pressure: |
29,152Psi |
201Mpa |
| |
Operating Height: |
37.04in |
941mm |
| |
Machine Dimensions: |
W47in D114 H164 |
W1200mm D2900 H4162 |
| |
|
|
|
| |
|
|
|
| |
STI-1.6-220VR-Z |
|
|
| |
Clamping Force: |
242 US Ton |
220 Metric Ton |
| |
Daylight: |
27.56in |
700mm |
| |
Clamp Stroke: |
19.68in |
500mm |
| |
Heating Platen: |
25.59in x 25.59in |
650mm x 650mm |
| |
Platen Heaters: |
Upper: 6 x 1.2kW |
Lower: 6 x 1.2kW |
| |
Ejector Force: |
5.51 US Ton |
5 Metric Ton |
| |
Injection Volume: |
61/97.6/122in3 |
1000/1600/2000cm3 |
| |
Injection Pressure: |
29,152Psi |
201Mpa |
| |
Operating Height: |
41.54in |
1055mm |
|
| |
Machine Dimensions: |
W57in x D121 x H175 |
W1440mm D3065 H4431 |
|
| |
|
|
|
|
| |
Standard Features: |
|
|
| |
Heating Platens |
|
|
| |
Lower Ejectors |
|
|
| |
Platen Shuttle |
|
|
| |
Nozzle Lift |
|
|
| |
Graphic Touch Screen |
|
|
| |
Pressure & Speed Profiling of Extruder, Clamp, Injector and Ejector cycles |
|
| |
PID Temperature Control |
|
|
| |
Heater Breakage Detection Device |
|
|
| |
Oil Cooler |
|
|
| |
Hopper Cooler |
|
|
| |
Production Counter |
|
|
| |
Bumping |
|
|
| |
|
|
|
| |
Options: |
|
|
|
| |
Injection Volume Increase |
|
| |
Platen Size Increase |
|
| |
Daylight Increase |
|
| |
Mold Heater Circuit |
|
| |
Vacuum Pump |
|
| |
Cold Runner Temperature Regulator |
|
| |
Closed Loop Injection Control |
|
| |
Mold Loading Rollers |
|
| |
Energy Saving Hybrid Pump Motor |
|
| |
STI-Net Production Monitoring System (see info) |
|
| |
Strip Feed Device (see info) |
|
| |
Automation Conversion (see info) |
|
