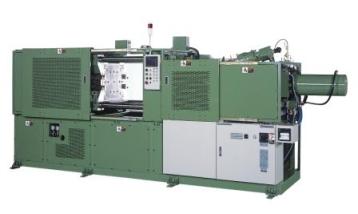

STI-1.0-150HA2 |
| Back to Machine Range |
Machine Summary |
| 150ton horizontal molding machine ideal for continuous, high volume production. |
| Request More Info / Quotation |
Standard Attachments |
| Graphic terminal |
| Heater breakage detector |
| Electrical circuit for vacuum option |
| Molding conditions memory |
| Inside ejectors |
| Synchronized dual start buttons |
| "One-touch" mold attachment (Upper) |
| Heat regulator |
| Safety sensors and alarms |
Optional Attachments |
| Cold runner system |
| Vacuum pump |
| Hopper feeder |
| Mold temperature memory |
| "One-touch" mold attachment (lower) |
| Ejector pins |
| Core slide |
Machine Specifications |
||
| Clamping Force: | 165 US Ton | 150 Metric Ton |
| Daylight: | 31.5in | 800mm |
| Clamp Stroke: | 23.6in | 600mm |
| Heating Platen: | W21.65in D21.65in | W550mm x D550mm |
| Platen Heaters: | 11kW x 4P | |
| Ejector Force: | 4.39 US Ton | 3.98 Metric Ton |
| Injection Volume: | 61in3 | 1000cm3 |
| Injection Pressure: | 22,770psi | 157MPa |
| Machine Dimensions: | W44in D179 H71 | W1110 D4550 H1800 |
