Standard Attachments |
| 10inch color graphic terminal |
| Heater breakage detector |
| Electrical circuit for vacuum option |
| Molding conditions memory – up to 80 |
| Sequential injector, clamp, screw, ejector |
| Photoelectric safety curtain |
| Synchronized dual start buttons |
| "One-touch" mold attachment |
| Heat regulator |
| Safety sensors and alarms |
Optional Attachments |
| Cold runner system |
| Vacuum pump |
| Hopper feeder |
| Mold heater |
| Mold temperature memory |
| "One-touch" mold attachment (lower) |
| Ejector pins |
| Core slide |
| Production monitoring system |

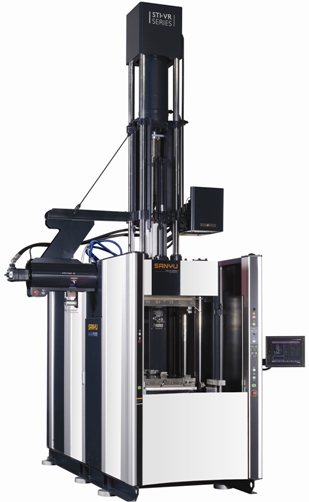

STI-1.0-110VR-Z |
| Back to Machine Range |
| View VR-Z Information Page |
| See also STI-1.6-160VR-Z (160ton) |
| See also STI-1.6-220VR-Z (220ton) |
| See also STI-1.6-220VR-V (Vacuum) |
Machine Summary |
Compact design with low operating height (36”) and strip feeding height eliminating need for steps or platforms. High injection pressure (198Mpa) and large heating platen (19.68” x 19.68”). Linear-scale measurement of clamp, ejector, injector and nozzle enabling highly accurate settings and control. Dual level safety system, diagnostics and maintenance-friendly design. |
| Request More Info / Quotation |
Machine Specifications |
||
| Clamping Force: | 121 US Ton | 110 Metric Ton |
| Daylight: | 21.65in | 550mm |
| Clamp Stroke: | 15.75in | 400mm |
| Heating Platen: | 19.68Win 19.68Din | W500mm D500mm |
| Platen Heaters: | Upper: 6 x 1.0kW | Lower: 6 x 1.0kW |
| Ejector Force: | 3.9 US Ton | 3.5 Metric Ton |
| Injection Volume: | 61in3 | 1000cm3 |
| Injection Pressure: | 28,717Psi | 198Mpa |
| Flow Volume: | 13.2gal/min | 50L/min |
| Operating Height | 35.83in | 910mm |
| Machine Dimensions | 41Win D108 H149 | W1050mm D2755 H3796 |
