Standard Attachments |
| 10inch color graphic terminal |
| Heater breakage detector |
| Electrical circuit for vacuum option |
| Molding conditions memory – up to 80 |
| Sequential injector, clamp, screw, ejector |
| Photoelectric safety curtain |
| Synchronized dual start buttons |
| "One-touch" mold attachment |
| Heat regulator |
| Safety sensors and alarms |
Optional Attachments |
| Cold runner system |
| Vacuum pump |
| Hopper feeder |
| Mold heater |
| Mold temperature memory |
| "One-touch" mold attachment (lower) |
| Ejector pins |
| Core slide |
| Mold Slide |
| Production monitoring system |

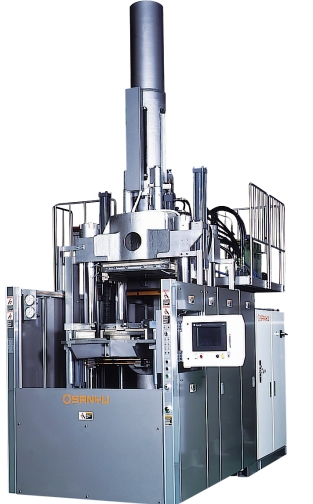

STI-6.4-800VA |
| Back to Machine Range |
Machine Summary |
800ton vertical injection press |
| Request More Info / Quotation |
Machine Specifications |
||
| Clamping Force: | 880 US Ton | 800 Metric Ton |
| Daylight: | 59.06in | 1500mm |
| Clamp Stroke: | 39.37in | 1000mm |
| Heating Platen: | W43.31in D39.37in | W1100mm D1000mm |
| Injection Volume: | 390in3 / 488in3 | 6400cm3 / 8000cm3 |
| Injection Pressure: | 22,770psi | 157Mpa |
