Standard Attachments

10inch color graphic terminal
Heater breakage detector
Electrical circuit for vacuum option
Molding conditions memory – up to 80
Sequential injector, clamp, screw, ejector
Photoelectric safety curtain
Synchronized dual start buttons
"One-touch" mold attachment
Heat regulator
Safety sensors and alarms

Optional Attachments

Cold runner system
Vacuum pump
Hopper feeder
Mold heater
Mold temperature memory
"One-touch" mold attachment (lower)
Ejector pins
Core slide
Mold Slide
Production monitoring system

Site Map
Terms of Use
Contact Us
Global Site

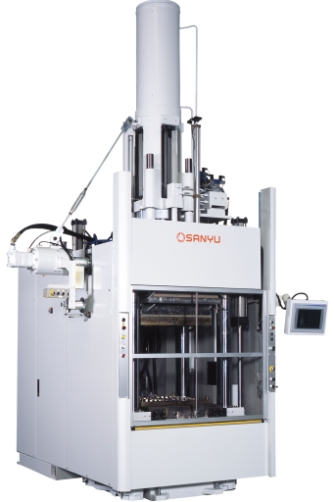

STI-4.0-450VS
STI-4.0-450VS
Back to Machine Range


Machine Summary

Compact design (67% of previous Sanyu model) with low operating height (33.46”). Very large heating platen (31.49” x 39.37). Automatic die-block thickness adjustment. Linear-scale measurement of clamp, ejector, injector and nozzle to enable accurate settings and operation. Dual level (fail-safe) safety system, front safety-shutter and maintenance friendly design.

Request More Info / Quotation
Machine Specifications

Clamping Force: 496 US Ton 450 Metric Ton
Daylight: 39.37in 1000mm
Clamp Stroke: 32.68in         830mm
Heating Platen: W31.49in D39.37in W800mm D1,000mm
Platen Heaters: Upper  6 x 1.6kW Lower  6 x 1.6kW
Ejector Force: 9.7 US Ton 8.8 Metric Ton
Injection Volume: 244in3       4000cm3
Injection Pressure: 21,450psi 148Mpa
Flow Volume: 21.13gal/min 80L/min
Operating Height: 33.46in                    850mm
Screw Height:

81.89in

2080mm
Machine Dimensions: W69in D104 H178 W1750mm D2640 H4514
