STI-1.0-100HA2 |
| Back to Machine Range |
Machine Summary |

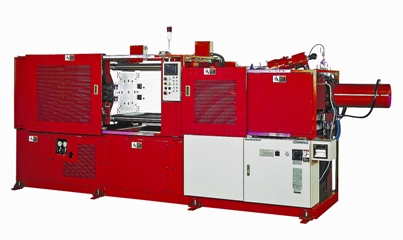

| 100ton horizontal injection molding machine ideal for continuous, high volume production. |
| Request More Info / Quotation |
Standard Attachments |
| Graphic terminal |
| Heater breakage detector |
| Electrical circuit for vacuum option |
| Molding conditions memory |
| Inside ejectors |
| Synchronized dual start buttons |
| Heat regulator |
| Safety sensors and alarms |
Optional Attachments |
| Cold runner system |
| Vacuum pump |
| Hopper feeder |
| Mold temperature memory |
| Ejector pins |
| Core slide |
Machine Specifications |
||
| Clamping Force: | 110 US Ton | 100 Metric Ton |
| Daylight: | 27.6 in | 700mm |
| Clamp Stroke: | 17.7in | 450mm |
| Heating Platen: | W17.7in x D17.7in | W450mm x D450mm |
| Ejector Force: | 3.3 US Ton | 3 Metric Ton |
| Injection Volume: | 61in3 | 1000cm3 |
| Injection Pressure: | 22,770psi | 157MPa |
| Machine Dimensions: | W39in D154 H71 | W1000mm D3920 H1800 |
