Electrically powered injection unit for more control over injection speed, pressure and volume. |

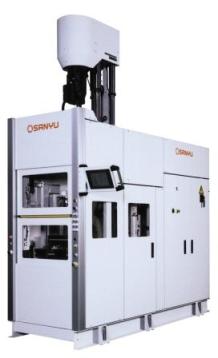

STI-0.8-150VP |
| Back to Machine Range |
Machine Summary |
Industry-first hybrid vertical injection molding machine. Hydraulic clamp with electric powered injection system enables precise control of injection speed and pressure. Includes adjustable touch panel screen, multiple mold condition settings, monitoring, diagnostics and history. |
| Request More Info / Quotation |
Standard Attachments |
| 10inch color graphic terminal |
| Heater breakage detector |
| Electrical circuit for vacuum option |
| Molding conditions memory – up to 80 |
| Front shutter |
| Synchronized dual start buttons |
| "One-touch" mold attachment (Upper) |
| Heat regulator |
| Safety sensors and alarms |
Optional Attachments |
| Cold runner system |
| Vacuum pump |
| Hopper feeder |
| Mold heater |
| Mold temperature memory |
| "One-touch" mold attachment (lower) |
| Ejector pins |
| Core slide |
| Production monitoring system |
| Photoelectric safety curtain |
Machine Specifications |
||
| Clamping Force: | 165 US Ton | 150 Metric Ton |
| Daylight: | 21.65in | 550mm |
| Clamp Stroke: | 14.76in | 375mm |
| Heating Platen: | W21.65in D21.65in | W550mm D550mm |
| Platen Heaters: | Upper 6 x 1kW | |
| Lower 6 x 1kW | ||
| Ejector Force: | 5.19 US Ton | 4.71 Metric Ton |
| Injection Volume: | 48.82in3 | 800cm3 |
| Injection Pressure: | 20,595psi | 142MPa |
| Flow Volume: | 13.21gal/min | 50L/min |
| Machine Dimensions: | W44in D123 H151 | W1110mm D3130 H3837 |
