Standard Attachments |
| 10inch color graphic terminal |
| Production counter |
| Heater breakage detector |
| Mold condition memory |
| Sequential injection control |
| Outside Ejectors |
| Photoelectric safety curtain |
| Front safety cover |
| Synchronized safety start buttons |
| One-touch mold attachment |
| Heater regulator |
Optional Attachments |
| Cold runner system |
| Vacuum pump |
| Mold replacement rollers |
| Mold heater circuit |
| Mold temperature memory |
| "One-touch" mold attachment (lower) |
| Hopper feed roller |
| Hopper cooler |
| Production monitoring system |

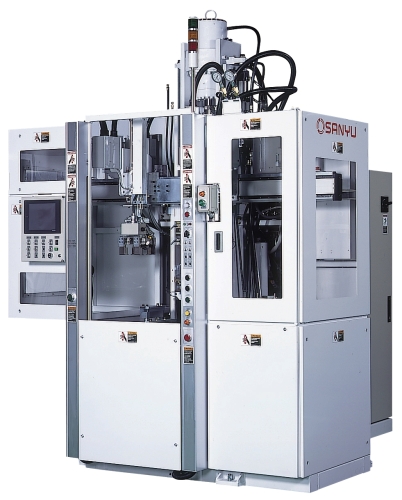

STI-0.4-40VA3 |
 |
| Back to Machine Range |
Machine Summary |
Compact, 40-ton press ideal for precision production of smaller parts or prototyping. Easy to use 10” touch panel, molding conditions memory, monitoring and diagnostics. Versatile automation system optional. |
| Request More Info / Quotation |
Machine Specifications |
||
| Clamping Force: | 44 US Ton | 40 Metric Ton |
| Daylight: | 18.31in | 465mm |
| Clamp Stroke: | 13.78in | 350mm |
| Heating Platen: | W12.80in D12.80in | W325mm D325mm |
| Platen Heaters: | Upper 4 x 0.8kW | Lower 4 x 0.8kW |
| Ejector Force: | 2.14 US Ton | 1.94 Metric Ton |
| Injection Volume: | 24.4in3 | 400cm3 |
| Injection Pressure: | 22,770psi | 157Mpa |
| Flow Volume: | 8.45gal/min | 32L/min |
| Machine Dims: | W85in D93 H112 |
W2160mm D2350 H2841 |
