STI-0.4-40HA2 |
| Back to Machine Range |
Machine Summary |

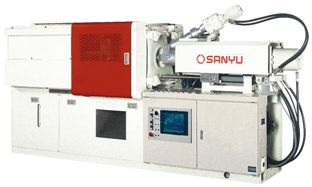

| 40ton horizontal injection molding machine ideal for continuous, high volume production. |
| Request More Info / Quotation |
Standard Attachments |
| Graphic terminal |
| Heater breakage detector |
| Electrical circuit for vacuum option |
| Molding conditions memory |
| Inside ejectors |
| Synchronized dual start buttons |
| Heat regulator |
| Safety sensors and alarms |
Optional Attachments |
| Cold runner system |
| Vacuum pump |
| Hopper feeder |
| Mold temperature memory |
| Ejector pins |
| Core slide |
Machine Specifications |
||
| Clamping Force: | 44 US Ton | 40 Metric Ton |
| Daylight: | 19.7in | 500mm |
| Clamp Stroke: | 9.8in | 250mm |
| Heating Platen: | W13.8in x D13.8in | W350mm x D350mm |
| Ejector Force: | 3.3 US Ton | 3 Metric Ton |
| Injection Volume: | 24.4in3 | 400cm3 |
| Injection Pressure: | 22,770psi | 157MPa |
| Machine Dimensions: | W30in D108 H71 | W770mm D2750 H1800 |
