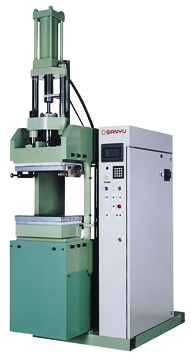

STI-0.16-25VA3 |
| Back to Machine Range |
Machine Summary |
| Tie-bar free injection molding press with large platen, ideal for continuous molding of seal joints. Easy operability with quick tool change attachment, front facing graphic operation panel and floor level operation. |
| Request More Info / Quotation |
Standard Attachments |
| Graphic Operation Panel |
| Heater Breakage Detector |
| Sequencial injection/clamp/screw |
| "One-touch" mold attachment |
| Heat regulator |
| Safety sensors and alarms |
| Nozzle Lift |
| Production Counter |
Optional Attachments |
| Mold Slide |
| Cold runner system |
| Mold heater |
| Production monitoring system |
| Vacuum pump |
| Hopper feeder |
| Hopper cooler |
| Oil cooler |
| Mold temperature memory |
Machine Specifications |
||
| Clamping Force: | 27.5US Ton | 25 Metric Ton |
| Daylight: | 13.78in | 350mm |
| Clamp Stroke: | 9.84in | 250mm |
| Heating Platen: | 17.72Win 11.81Din | W450mm D300mm |
| Platen Heaters: | 2 x 3.6kW | |
| Injection Volume: | 9.76in3 | 160cm3 |
| Injection Pressure: | 22,770Psi | 157Mpa |
| Flow Volume: | 5.55gal/min | 21L/min |
| Operating Height | 39.57in | 1005mm |
| Screw Height | 55.12in |
1400mm |
| Machine Dimensions | 41Win x D59 x H110 | W1050mm D1500 H2800 |
